Product Information

Engineering & Industrial Tools » Magnets and Magnetics » Magnetic Workholding » Magnetic Holdfast

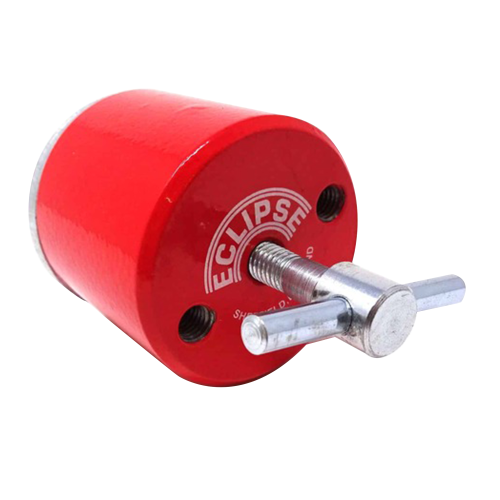

ECLIPSE Magnetic Holdfast
Product Code EC-E942
Product Description Magnetic Holdfast
Brand ECLIPSE
Product Dimensions Diameter 100mm
Height 74.5mm
Fixing Holes PCD 69.1
Features & Benefits Can be built into workholding handling and assembly fixtures to provide a high clamping force and positive grip
Maximum operating temp is 100 Deg Celsius
No. of Holes 3
Weight 4.7kg
Max Pull 183kg
Barcode 5012095492245
