Product Information

Metrology Tools » Hand Tools » Depth and Angle Gauges » Depth Gauge - Reversible Base

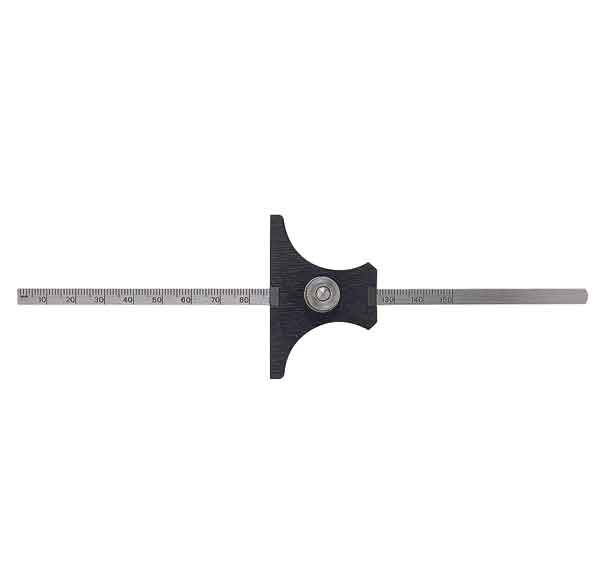

MOORE & WRIGHT Depth Gauge - Reversible
Base
Product Code MW-43M
Product Description Depth Gauge - Reversible Base
Brand MOORE & WRIGHT
Product Dimensions Total Length of Blade 195mm
Rule Width 5.5mm
Rule Thickness 1.0mm
Front Face Graduations 0.5,1.0mm
Rear Face Graduations 1.0mm
Base Length 18mm, 56mm
Features & Benefits Full range rule adjustment
Readings can be fixed by means of a locknut
Rules graduated on both sides
Accurately ground top and bottom faces allow base to be reversed, for use in confined spaces
Barcode 5012095003496
