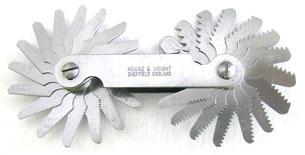

MOORE & WRIGHT Imperial Screw Pitch Gauge
Product Code MW-800
Product Description Imperial Screw Pitch Gauge
Brand MOORE & WRIGHT
Product Dimensions Screw Pitch Whitworth
Number of Blades 28
Threads per mm 4, 4.5, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, 60
Features & Benefits Accurately milled steel blades
Designed to check both internal and external thread forms
Marked with nominal size on each blade
All blades fixed in a steel sleeve
Screw cutting gauge included - 55 Degrees
Barcode 5012095003830
