Product Information

Metrology Tools » Hand Tools » Screw Pitch Gauges » Imperial Screw Pitch Gauge

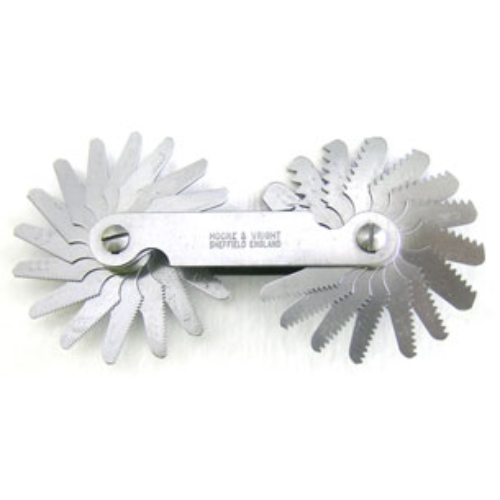

MOORE & WRIGHT Imperial Screw Pitch Gauge
Product Code MW-806
Product Description Imperial Screw Pitch Gauge
Brand MOORE & WRIGHT
Product Dimensions Screw Pitch Unified
Number of Blades 30
Threads per mm 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 11.5, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42
Features & Benefits Accurately milled steel blades
Designed to check both internal and external thread forms
Marked with nominal size on each blade
All blades fixed in a steel sleeve
Barcode 5012095003861
