Product Information

Metrology Tools » Combination Sets » Traditional Precision Combination Set Metric

MOORE & WRIGHT Error: wrong number of arguments (1 for 2)
Product Code MW-CSM300

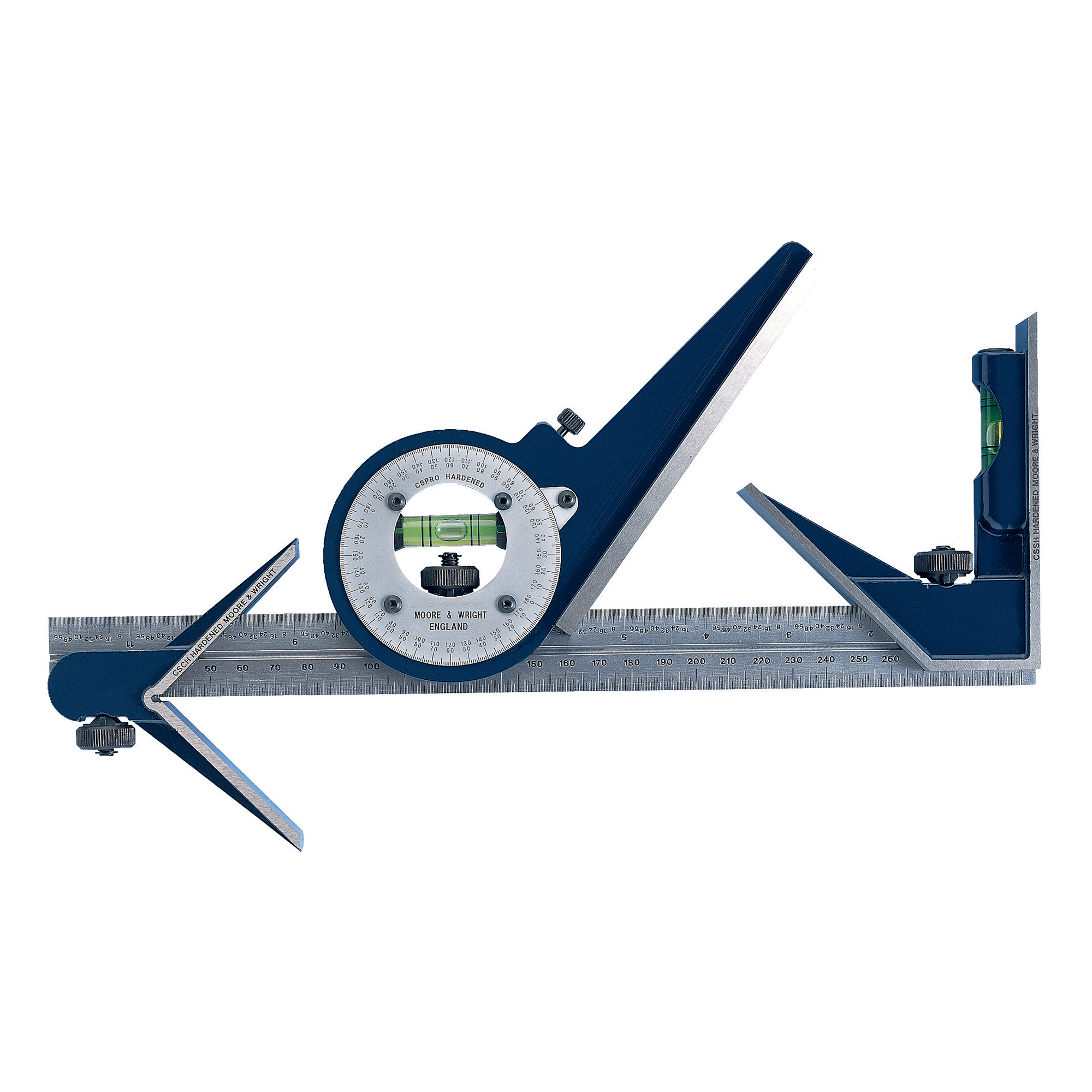

Product Description Traditional Precision Combination Set Metric
Product Dimensions 0-300mm
Features & Benefits Fully hardened and tempered precision rules with deeply
etched graduations on both sides for ease of reading and long life
Fully hardened and ground datum faces to resist wear
Centrally mounted protractor vial allows unrestricted viewing
Protractor has full 360 degree scale plate,
graduated 0-180 degrees
Satin chrome scale plate on protractor
Unique rule clamp allows positive location and clamping
Square head offers the following fixed angles
15, 30, 45, 60, 75 and 90 degrees
Centre head offers a fixed 90 degree angle, for finding the centre of round bar stock up to 120mm diameter
Clipped corner on rule to maximize capability
Barcode 5051102012649
