Product Information

Eclipse Magnetics » Welding » Magnetic Positioner

Product Code EC-922

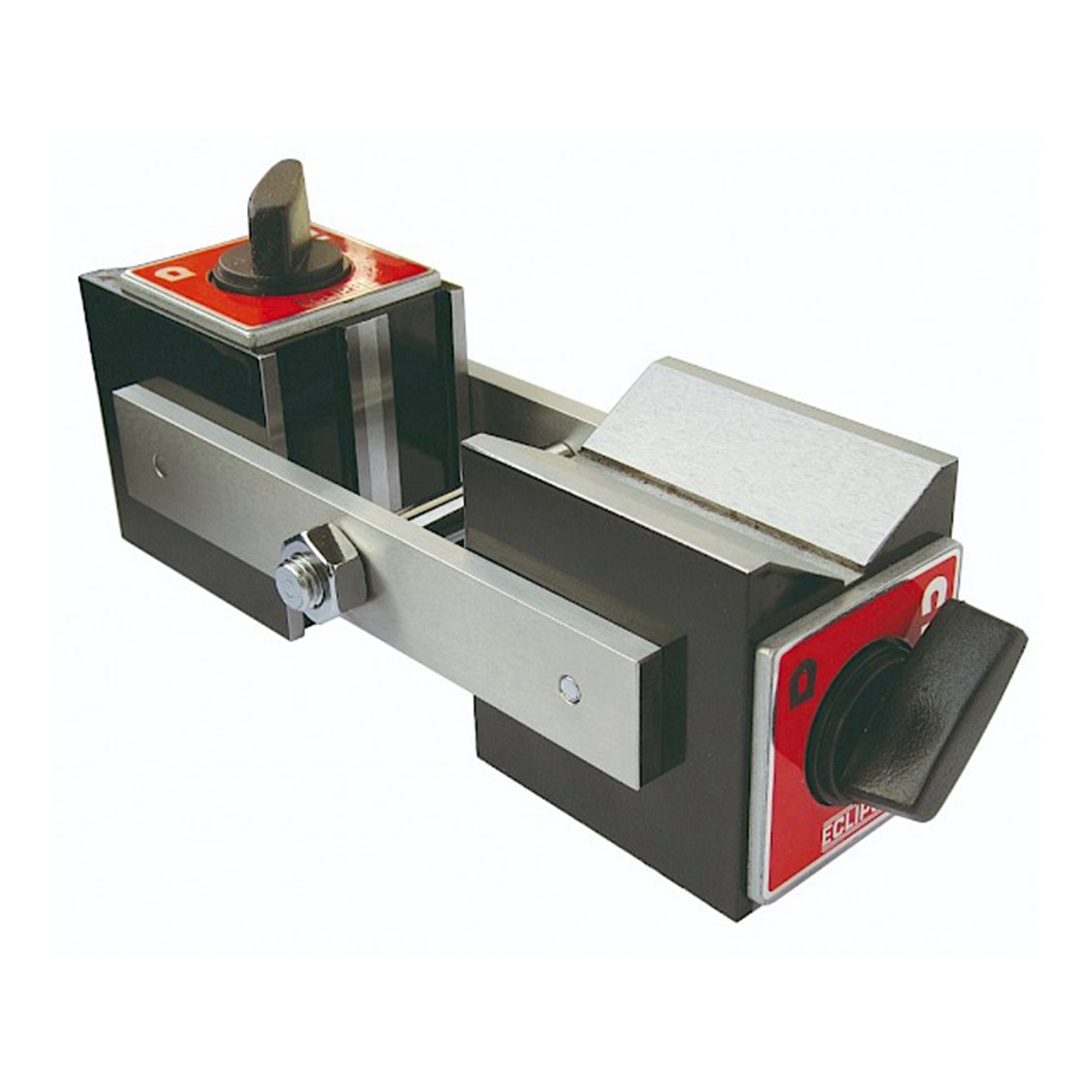

Product Description Magnetic Positioner
Product Dimensions Length 206mm
Height 63.5mm
Width 76mm
Features & Benefits Is a heavy duty unit consisting of 2 magnetic blocks connected by 2 non magnetic steel straps
The blocks contain high performance Alcomax 3 magnetic material
Magnetic on two faces
On_Off switch located on each end
Weight 3.17kg
Max Pull on Flat Face 113kg
Max Pull on Vee'd Face 104kg
Barcode 5012095491545
