Moore & Wright | Hand Tools | Metric & Imperial Screw Pitch Gauge


Product Code MW-804
Description

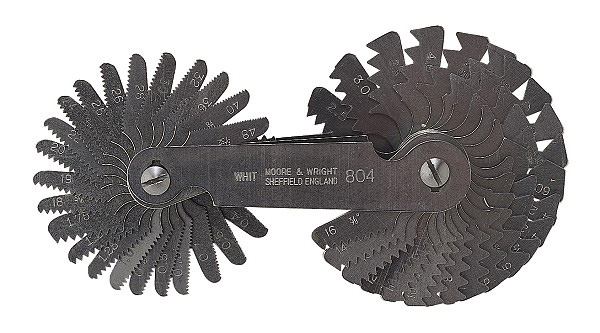

Metric & Imperial Screw Pitch Gauge

Brand MOORE & WRIGHT
Specifications Combined SI Metric and Whitworth
Number of Blades 49
Thread per mm
METRIC 0.4, 0.5, 0.7, 0.75, 0.8, 0.9, 1.0 1.25, 1.50, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0
IMPERIAL 4, 4.5, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, 60
Features & Benefits Accurately milled steel blades
Designed to check both internal and external thread forms
Marked with nominal size on each blade
All blades fixed in a steel sleeve
Screw cutting gauge included - 60 Degrees
Compliance & Availablity
Barcode 5051102041045
